Max. working capacity ( Max.numbers of breaker powering)
3 iRCBO+ 8 iMCB
Conductor cross-sections
38
Pollution Degree
2
Ambient temperature:
-15 - +40
Storage temperature:
-25---+70
Humidity
< 95%
Altitude:
<=2000
Terminal Connection
Cable/Pin-type busbar
Mounting
Din rail En60715(35mm) by means of fast clip device
Connection
From top to bottom

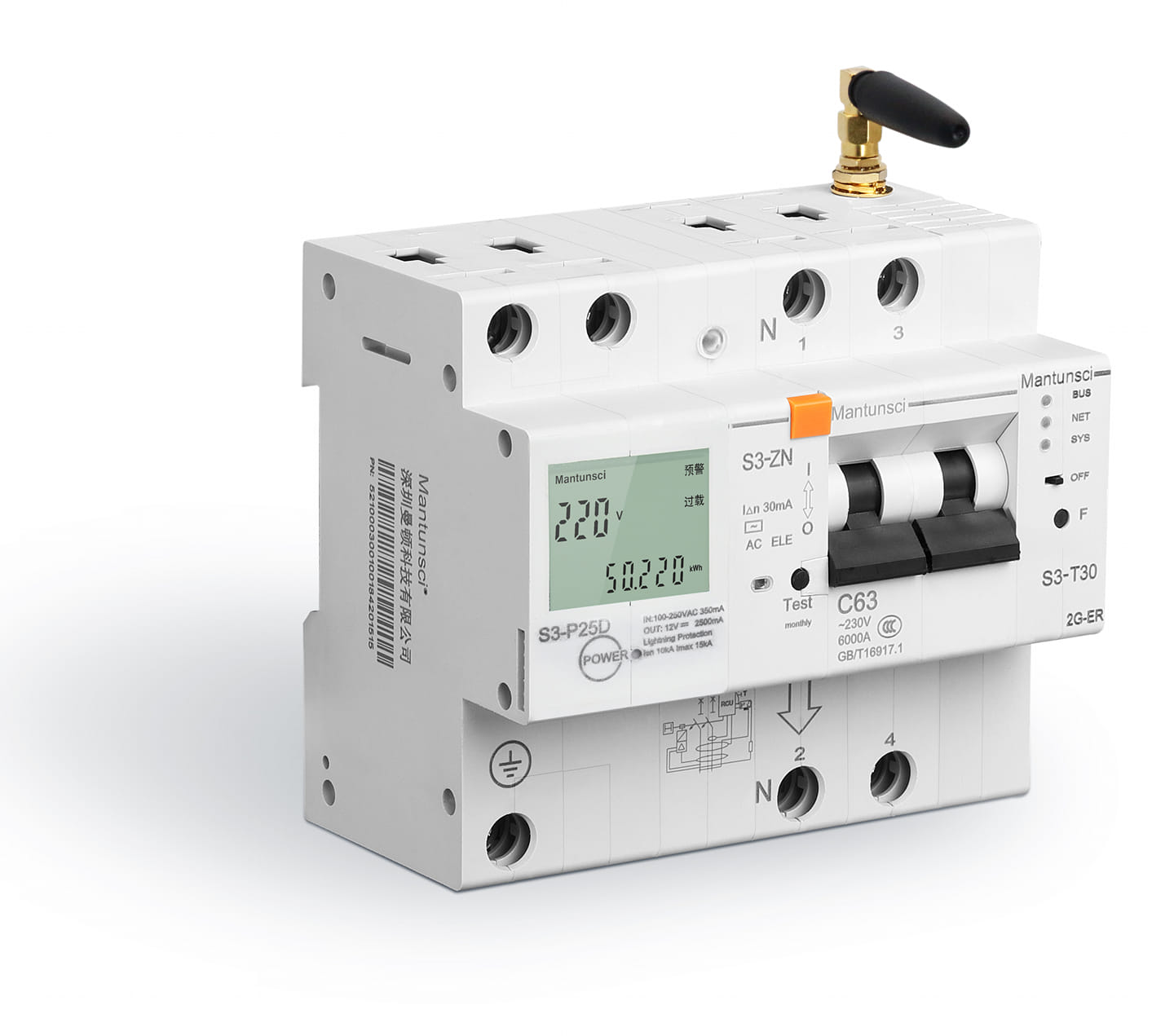

Technical specification of Power Module
Power supplier Module may offer stable DC power for Smart Breaker MTS3 and has Class II Surge Protection. It is also the necessory part for Smart Breaker MTS3 system.
Item Code:
MTS3-P25N
MTS3-P25D
Standards:
EN55022, EN55024,EN61000,EN60950,GB4943
Approvals:
CE,CCC
Functions
Power supplier, Surge Protection
Rated voltage Un:
220
Rated input voltage Range:
100-265
Frequency (HZ):
50/60
Rated input Current
350
Rated output Voltage
12
Rated output Current
2.5
Type / test class of Surge Protection:
2 / II
Numbers of Modules( 1 module=18mm)
36(2 P)
Max.Cont. operating voltage Uc:
175, 275
Max.discharge current Imax (8/20) per pole Imax:
15
Nominal discharge current In (8/20) per pole In:
10
Max. working capacity ( Max.numbers of breaker powering)
1 iRCBO+8 iMCB
Conductor cross-sections
38
Pollution Degree
2
Ambient temperature:
-15 - +40
Storage temperature:
-25---+70
Humidity
< 95%
Altitude:
<=2000
Terminal Connection
Cable/Pin-type busbar
Mounting
Din rail En60715(35mm) by means of fast clip device
Connection
From top to bottom

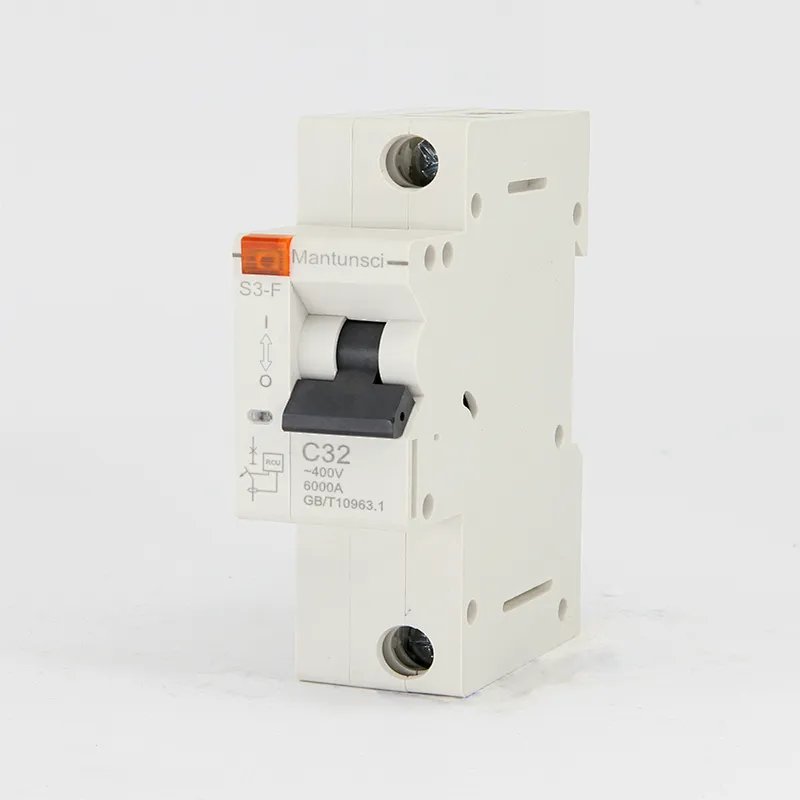

Technical specification of Smart Breaker Modules
Smart Breakers are the core part of MTS3 smart system,it combine protection, metering, monitor, timer,automation, event record and notice.
Item Code:
MTS3-M1
MTS3-M2
MTS3-M3
MTS3-M4
Standards:
IEC60898, GB10963.1
Approvals:
CE,CCC
Poles
1P
2P
3P
4P
Rated voltage Ue
230/400-240/415
Operational voltage
Min.90 Max:250/440
Frequency (HZ):
50/60
Rated Current
10,16,20,25,32,40,50,63,80
Rated insulation voltage Ui
500
Rated impulse withstand voltage (1.2/50) Uimp
2500
Rated Breaking capacity acc.to IEC60899 Icn
6000
Breaking time under Icn
<=0.04S
Triping Characteristic
B (3-5In)
C (5-10In)
D (10-14In)
Other Functions
Over/under voltage protection , warning and Alarm
Max.Power and Current Setting
Auto test of earth leakage current
High Temperature protection, warning and Alarm
Arcing Fault Protection, warning and Alarm
Monitor of Current, power, voltage in real-time
Remote control
Timer
Meter
Event record and notice
Breaking time when voltage is over 263Vac
10S
Over/undder voltage warning
when voltage is higher than 250Vac or lower than 190Vac
Breaking time when the current reach the max.current or power setup
5s
Electric Life
10000
Mechanical life
20000
Conductor cross-sections
38
Pollution Degree
2
Numbers of Modules( 1 module=18mm):
1.5 (27mm)
2.5 (45mm)
4 (72mm)
5(90mm)
Ambient temperature:
-15 - +40
Storage temperature:
-25---+70
Humidity
< 95%
Altitude:
<=2000
Terminal Connection
Cable/Pin-type busbar
Mounting
Din rail En60715(35mm) by means of fast clip device
Connection
From top to bottom

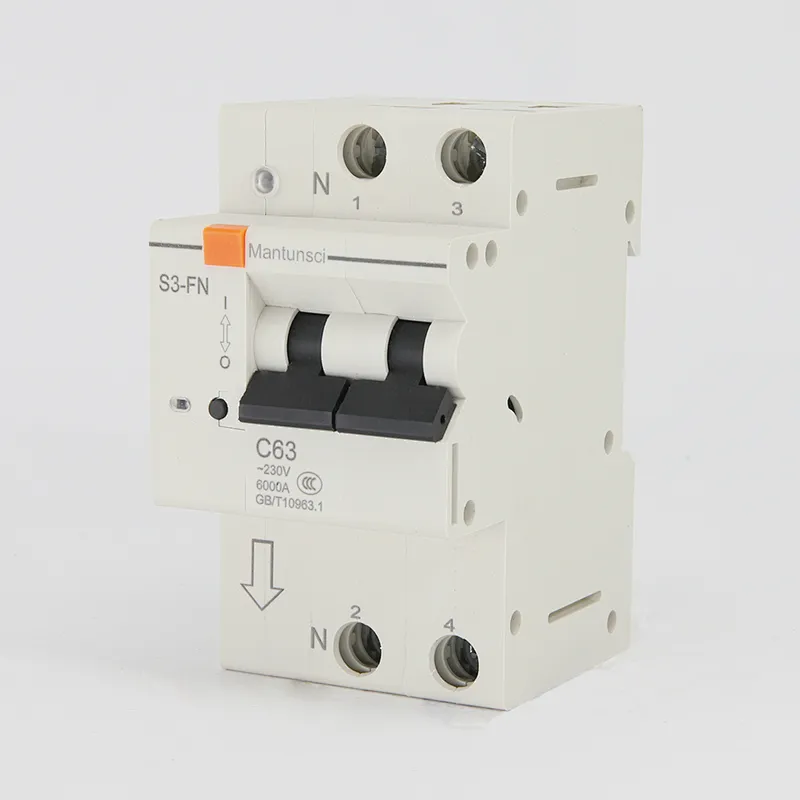

Technical specification of Smart RCBO Modules
Smart RCBO may be used as main switch and line protection in Smart Breaker MTS3 system. It is also the necessory part for Smart Breaker MTS3 system as main switch.
