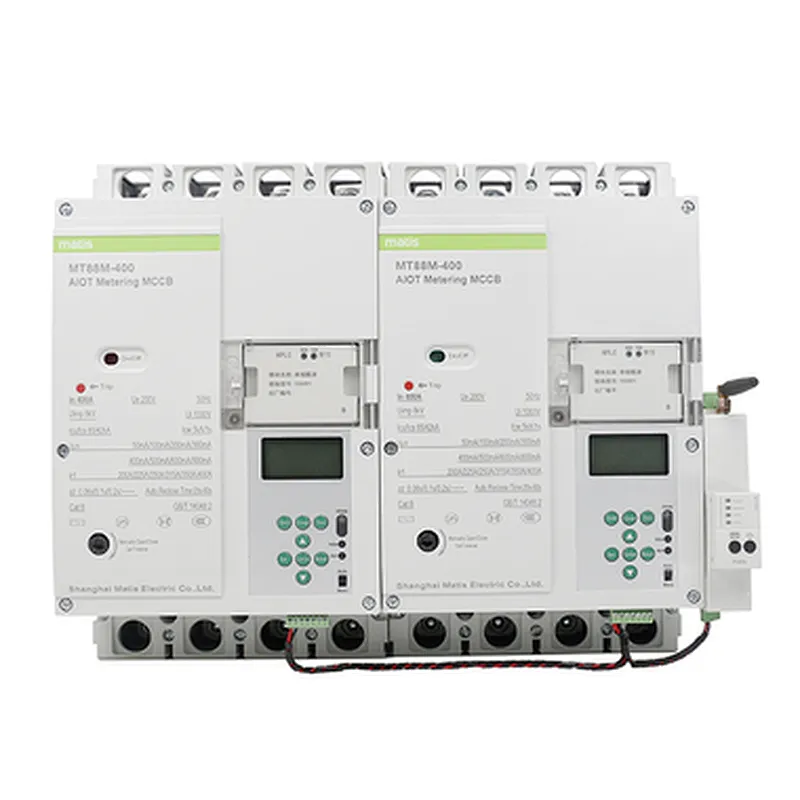

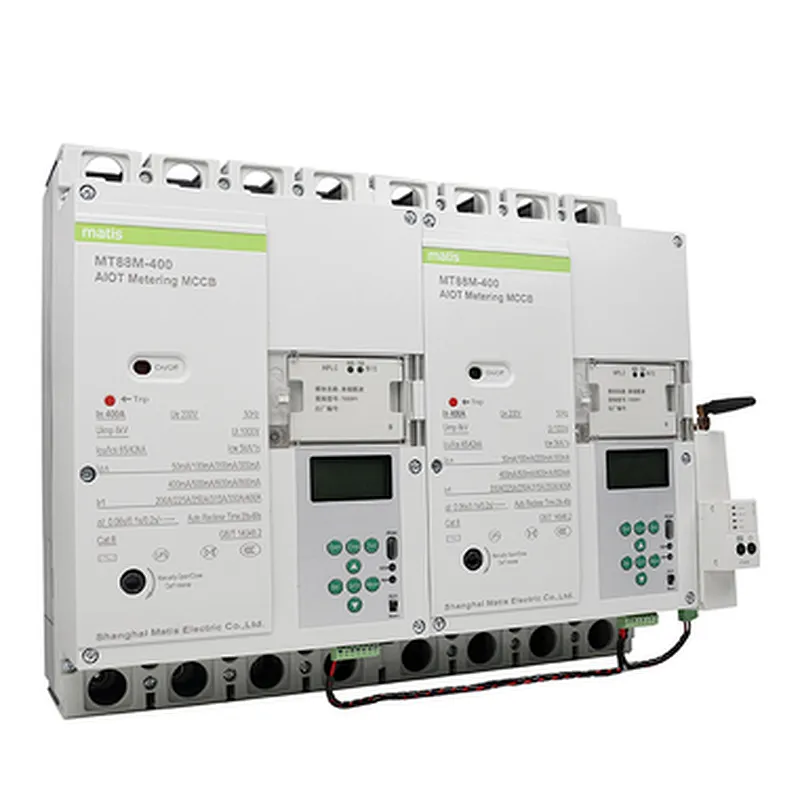

MT88M AIOT Metering MCCB

Model NO.: MT88M

Quantity:

Product Description

Technical specification of iMCCB
Item Code:	MT88M-LM125	MT88M-LM250	MT88M-LM400	MT88M-LM630
Standards:	IEC60947-2, IEC61009
Approvals:	CE,CCC
Poles:	3P+N
Frame Current:	125	250	400	630
Rated Current:	63,80,100,125	100,125,140,160	200,225,250	400,500,630
	180,200,225,250		315,350,400
Rated Voltage:	400
Insulation Voltage:	1000
Frequency (HZ):	50/60Hz
Metering and Billing:	Current,Voltage Accuracy 0.5% / Billing
	Active energy Accuracy 1%, Reactive Energy Accuracy : 2%
Rated impulsed withstand:	8000
breaking capacity (I∆m)：
Type (wave form of the earth：	AC
Rated residual current (I∆n) :	30,50,75,100, 200,300,500,800,1000mA, Auto
Overload and short circuit:	Electrical trip, three sector protection, voltage independent,
	Details refer to use manual
Over voltage setting threshold(Vac):	265-350(+/-5%)
Under voltage setting threshold(Vac) :	100-200(+/-5%)
Phase loss setting threshold (Vac):	100-200(+/-5%)
Electrical life：	1000	1000	1000	1000
Mechanical life：	7000	7000	4000	4000
Accessories：	Auxiliary(optional)
Monitoring and measurement：	Current, Voltage, Leakage current, active power, reactive power,
	apparent power, Frequency, Power factor, temperature of (optional),
	On/OFF status, Active energy accuacy :class 2

Alarm and event：	Over/under voltage, overload/overcurrent, short circuit, Residual current,
	phase loss, neutral loss, unbalance, power outage, temperature, manual
	swiching on/offff , Remote on/off, auto reclose

Display:	LCD Display and local operation
Communication:	RS485,Bluetooth, HPLC (local communication) , GPRS 4G, LAN RJ 45
Communication Protocol:	Modbus,DL/T645 (local protocol) ,MQTT
Software:	APP and Web software platform
Ambient/Storage temperature:	-5 - +40 / -25 - +70
