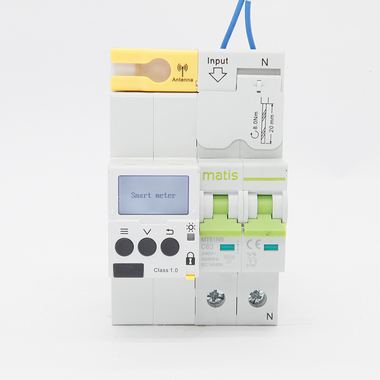

MT61GP AIoT Energy Meter with Breaker
MT61GP AIoT Energy Meter with Breaker
MT61GP AIoT Energy Meter with Breaker
MT61GP AIoT Energy Meter with Breaker
MT61GP AIoT Energy Meter with Breaker
MT61GP AIoT Energy Meter with Breaker
MT61GP AIoT Energy Meter with Breaker

MT61GP AIoT Energy Meter with Breaker

Model NO.
MT61GP
Delivery
FOB
Minimum order quantity
100 pieces
Supply Ability
1000 pieces / Week
Country of Origin
China
Stock Time
14 Days
Quantity:
Working PowerWorking Power
220~400V ,50Hz
Power Consumption< 8W
AC InputVoltage Input
Rated Voltage220V(LN)~400V(LL)
Overload1.2Un
Current Input
Rated Current63A.80A.100A.125A
Accuracy±1%
Input and output AuxilaryDISignal Input
PortRO220V,  Max. 5A output
Communication PortRS-485Modbus RTU protocol
2G/3GMQTT
NB-IoTMQTT
Ethernet PortOption for Ethernet Gateway
DisplayBig display screenDisplaying energy data, electrical parameter in LCD screen
AccuracyVoltage/Current±0.1%
Active/Reactive/Apparen Power±0.2%
Active/Reactive EnergyClass 1
Power Factor±0.5%
Frequency±0.005Hz
Temperature±0.10
Data SettingBasical parameter
Backlight timeTime Period
Bill and settlementMonth/Day
Timezone4 Timezone
Time period4 period
Parameter for BreakerMain Characteristics
Standards:IEC60947-2, EC60898-1 GB14048.2, GB10963.1
Insulation Voltage (Ui)500VAC
Pollution Grade3
Rated impulse withstan6kV
voltage (1.2/50) (Uimp)
Test temperature30℃
Tripping CharacteristicCurve B(3~5)In,Curve C (5~10)In,Curve D (10~14)In
Energy Class3
Breaking capacityIcn=6000A
Other Parameter
Protection Grade
IP20
LifeElctrical life: 10,000 times, Mechanical life:20,000 Times
Working Ambient Ambient temperature-10℃~+70℃
Storage temperature-40℃~+85℃
Humidity<95%
